Confirmed Delivery
Tracking received rates on notifications.
With Confirmed Delivery, every device that receives a notification sent through OneSignal will acknowledge successful receipt back to OneSignal. This stat will appear in a Message Report for a notification as “Confirmed.”
Most message platforms will automatically send a delivery confirmation to OneSignal, but some, like iOS, require additional setup.
How do Confirmed Deliveries work?

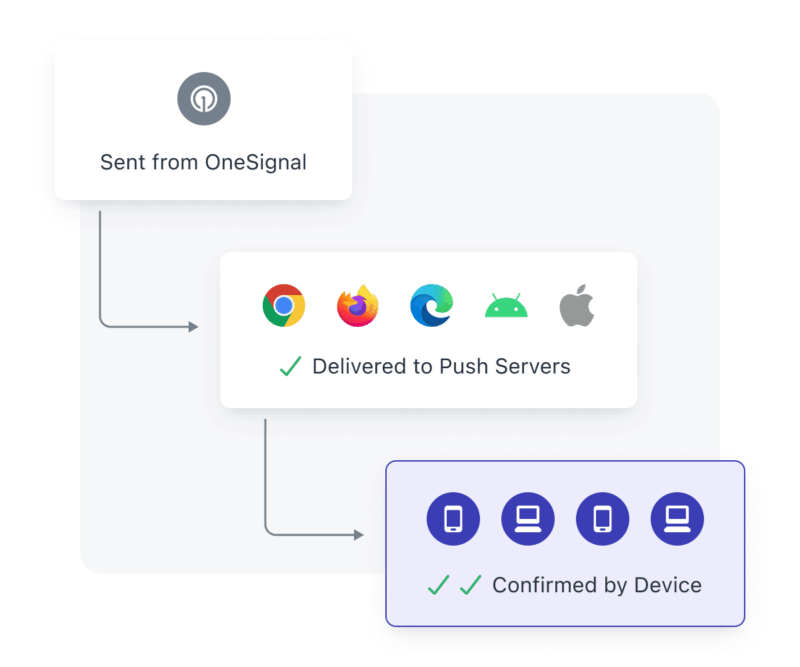

Push providers, like OneSignal, must go through Apple and Google in order to deliver notifications. After OneSignal has sent a message to a push provider, they forward the message to the end-user’s device. When OneSignal receives a “Confirmed Delivery” it means that the end-user’s device has sent us confirmation that your message was successfully delivered.
OneSignal calculates click-through-rate (CTR) based on OneSignal deliveries, but if you wanted additional granularity for your CTR to exclude devices that will never receive your notification, you can reference the Confirmed CTR metric on Push delivery reports. To learn more, read on Inactive Devices.
Why isn't this offered by most push providers?
To confirm device-level delivery of a notification, push providers must process an extra inbound request for each push. This leads to a large burst in traffic to their servers. Because OneSignal sends out pushes at a sustained speed of one million pushes per second, it can handle over one million incoming confirmed deliveries at the same rate.
Requirements
Confirmed Delivery is a paid feature.
Confirmed Delivery is available to customers on paid plans. To learn more, read about our pricing.
Tracking Confirmed Deliveries requires devices to have the minimum version of the OneSignal SDK that supports this feature and set up the OneSignal SDK according to our setup guides. Using our API only to add devices or omitting steps from our setup will cause Confirmed Deliveries to be unaccounted for that platform.
When an Android App receives a push, it automatically sends a confirmation to OneSignal, letting it know the app itself has received the push.
On iOS Apps, you must have the iOS Notification Service Extension setup for the confirmed delivery to be counted. Also, ensure you are using a version of our SDK that supports this feature. See below Supported SDKs Table to make sure you have the minimum version or higher.
Supported SDKs
Make sure you have the minimum SDK version or higher installed. We recommend using the latest version of the OneSignal SDK.
SDK | Minimum SDK Version |
---|---|
Android Native SDK | 3.12.0 |
iOS Native SDK | 2.12.2 |
React Native SDK | 3.6.0 |
Unity SDK | 2.11.0 |
Cordova & Ionic | 2.8.0 |
Flutter SDK | 2.3.1 |
Web Push SDK | 151105 (See Safari Limitations) |
Huawei | Not Supported. Enable through Huawei Dashboard. |
Confirmed Delivery Troubleshooting
Confirmed Deliveries cannot be triggered if a device is turned off or has no network connection. If a device is offline when the push is sent, it has a 3-day default time to come back online to get the push. You can increase or decrease this time with the Time To Live parameter.
Also, a Confirmed Delivery may be missed if the device has an unstable network connection at the time of receiving the push. The push may get received and clicked, generating a click response, but the network may not have been strong enough to send the received event.
iOS: Missing or Incorrect Notification Service Extension Implementation
The OneSignalNotificationServiceExtension and iOS SDK App Groups must be included in your iOS mobile app for Confirmed Deliveries to be counted. Please update the OneSignal SDK and check the Mobile Setup Guide to verify you set these up correctly. Common mistakes are:
- Make sure the App Group containers for both the OneSignalNotificationServiceExtension and your main app have the same value:
group.your-main-app-target-bundle-id.onesignal
. It is a common oversight to have different values here likegroup.your-bundle-id.OneSignalNotificationServiceExtension.onesignal
which is incorrect. - See Troubleshooting the iOS Notification Service Extension guide for details.
Mutable Content (iOS)
All push notifications sent to iOS devices automatically include the mutable-content
parameter set to 1
. This allows for the notification to be processed by the Service Extension which is required in order to make Confirmed Deliveries work correctly.
Android: Devices Force Quitting the App
Some Android device manufacturers put apps into a "force quit state" when you swipe the app away, which causes the device to not get notifications for your app when it is not running. Unfortunately, this is a manufacturer issue that affects all push providers.
We have a list of common devices and fixes for this in our Notification Not Shown Guide. We also wrote a blog post about this and many 3rd party sites discuss this as well, like: https://dontkillmyapp.com/
To try educating your users about this, you could set up In-App Messages to target users on Android and make sure they have battery optimizations for your app turned off or they are setting to keep your app running when swiped away.
Web
If you recently migrated from the v15 to v16 SDK, you may have missed a step. Double check the you:
- Added the correct version of OneSignal's SDK above your init call
<script src="https://cdn.onesignal.com/sdks/web/v16/OneSignalSDK.page.js" defer></script>
- Updated the
OneSignalSDKWorker.js
Service Worker script to reference:importScripts("https://cdn.onesignal.com/sdks/web/v16/OneSignalSDK.sw.js");
More details in our User Model Web Migration Guide.
Safari Limitations
Confirmed deliveries cannot be performed due to Safari.
Inactive Devices
Users do not normally unsubscribe from all their apps or websites when they get new devices or retire their old ones. In fact, you may have some devices at home that are subscribed to apps you have not visited in years!
Using Segments, you can check all device records that have not opened your app or website in over x amount (1 year, 6 months, event 1 hour) of time using the "Last Session" filter.
If you have devices that have not returned back to the app or site, you can delete these devices. However, make sure you do not accidentally delete active users.
How do I track which devices confirmed delivery?
Currently Confirmed Deliveries only tracks how many devices confirmed. It does not track which devices confirmed yet.
In order to track which specific devices confirmed receiving the push, (for example you want to send an email, In-App Message or SMS if they did not confirm) you would need to target devices individually either with the include_player_ids
or include_external_user_ids
targeting parameters on our Create notification REST API.
You will want to save the device ids targeted and notification "id" provided in the API Response. Further if the device is unsubscribed, you will get the unsubscribed device id in the invalid_player_ids
or invalid_external_user_ids
response.
After x amount of time has passed that you want to wait for checking if confirmed, you can use the View notification API endpoint with the notification "id" saved from the response.
If received
is 0, then they device has not received the push yet. Depending on how long you want to wait, you can set the ttl
parameter to discard the push if x time as passed. See Notification Behavior & Payload Information for more details.
Confirmed Delivery Limitations
Displayed but NOT Confirmed
Platform | Details |
---|---|
Android & iOS & Web | - Networking issue where device couldn’t finish a network call to onesignal.com - App or NSE crash after displaying |
iOS | - Network took over 30 seconds (iOS kills the NSE after this timeout) to response. |
Confirmed but NOT Displayed
Platform | Details |
---|---|
Android & iOS | - Notification does display BUT user doesn’t notice it due to low visibility; such as no sound, vibration, or grouped within to many other notifications.- Too many apps open on the device taking up too much memory - Possible but not likely. iOS NSE uses very little RAM. Android, possible on some low RAM devices under rare cases. |
iOS | - App is foreground AND one of the following: - OneSignal’s InFocus displaying is set to NONE - Another SDK or library suppressed the notification |
Android | - User turns off notifications at the device level and does not open app yet - User turns off notification category / channel for the notification that we tried to display - OneSignal NES is not displaying our notification we may be miss reporting it |
Delivered status but NOT Displayed AND NOT Confirmed
Not really a “Confirmed Delivered” issue but covering here for completeness.
Plataform | Details |
---|---|
iOS | - Device is offline and two or more notifications are sent - Apple’s APNs server only stores-and-forwards 1 (the most recent) notification per app. |
Android | - Device is offline and two or more notifications are sent with the same collapse_id - By design collapse_id replaces the stores-and-forward push on FCM’s server |
